Low Voltage Alert

Double the life of your VRLA batteries

Machines like scissor lifts, floor cleaners and golf carts are often left idle for long periods of time. Due to parasitic loads and normal self-discharge, the batteries
will over-discharge all by themselves. When machines are in more frequent use, operators will sometimes use a vehicle until the battery is flat and then just move on to another machine, rather than take the discharged one back for charging.

This means that the VRLA batteries that power the machines fail and need to be replaced too frequently. These batteries are maintenance-free but are susceptible to permanent damage from over-discharge. Buying a better battery won’t help this as even the best quality VRLA battery can be rendered useless by one major deep discharge event. This is a problem caused by the users not being alerted when it is critical that the batteries are recharged. If operators abandon discharged machines instead of recharging, that machine will not be usable by the next operator and the batteries will degrade rapidly in the discharged state. A VRLA battery failure causes a lot of secondary problems like stranded and unusable machines that are vital to operations.

The Low Voltage Alert helps to stop that cycle from happening.

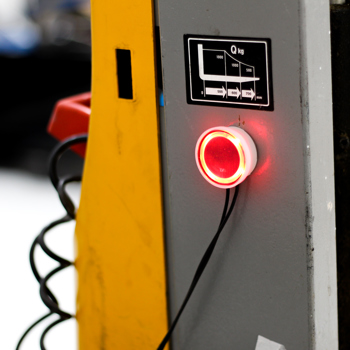

The LVA is a low voltage alert that monitors the battery and will alert operators when it critically needs to be charged to avoid damage. If the state of charge is acceptable the LVA flashes green. If the battery drops below the critical state of charge the LVA emits a loud audible warning tone, flashes red, and displays an illuminated charger plug icon which is universally understandable without instruction. If the LVA starts to make a sound, the operator can look at it and immediately understand that charging is critically required.

By using the LVA it is possible to double the useful life of VRLA batteries by eliminating battery failure due to unintended over-discharge. Stop replacing batteries and start saving.

 Finalist of the 2020 FLTA Awards - Innovation

  • Easy to understand: With its bright orange and red warning LED's and shrill audible alarm, operators can easily understand what they need to do when they see or hear the alert.
  • Simple installation: Connect two wires to power and the LVA will autodetect the battery voltage. A reverse connection will not damage the LVA.
  • Peace of mind: For a small investment battery owners can prevent over-discharge events that irrevocably damage the battery lead to early replacement.
  • Fully classified: The LVA holds both the CE Mark and UKCA Mark so you can be assured of its safety.
  • Tough: The LVA is built to withstand the harsh environment of industrial battery applications. All materials are corrosion resistant and the low-profile design prevents damage from battery cables and other hazards. The LVA has been engineered to last the life of the battery.
  • Inexpensive and cost-effective: One major over-discharge event can kill a VRLA battery, by preventing this delivers rapid ROI after the first alarm sounds.
  • Rugged design: The tough, low-profile LVA has a small footprint.
  • Self-powered: The LVA is powered by the battery on which it is installed and uses a tiny amount of energy (less than 3 mA), which won’t reduce performance or battery life and won't self-trigger the low voltage alert.
  • Satisfaction guaranteed: The LVA comes with a one-year conditional warranty and has an anticipated design life of greater than five years.

Operating Voltage

24-80V Nominal (72V Excluded)

Nominal current

5-20mA

Indications

Green: OK
Yellow (Centre): Charge Soon

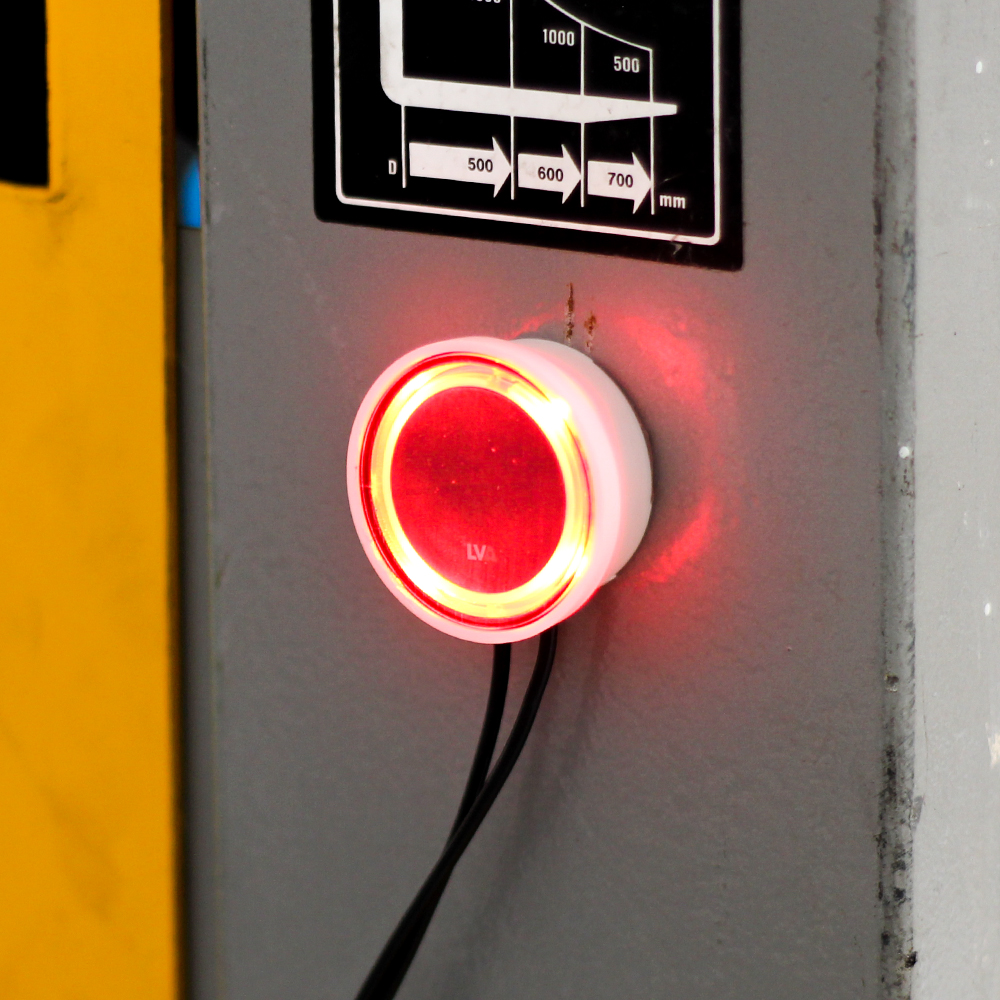

Red (Edge) + Yellow (Centre): Charge Now

Reverse polarity

Yes

Over-discharge threshold

80%

Connections

(B) M10 steel ring

(S) M3 steel ring and screw

(Q) FlexiTap piercing

Flame retardant

UL-VB

Fuse

125mA (FlexiTap)

Dimensions

Circular

Height



44mm (Diameter)

20mm

Weight

VRLA



0.042kg (42g)

Warranty

1 year

How to install an LVA on a VRLA battery
Understanding the LED's on the LVA
