Stealth Watering System™
The Stealth Watering System is a float-based, single-point watering system that precisely fills all battery cells to the same level simultaneously.
Perfect for these applications |
Forklift
Scrubbers
Aerial Access
Buggies
Marine
Taking
1/10
The Time of Manual Watering
Save
$7,000
Per Year in Labor
Saves Time & Money
The float-based system’s automatic regulation removes the need for routine manual watering, cutting down on labor costs and extending battery life through consistent electrolyte management. Its durable black PVC tubing and secure barbed-fit design ensure quick installation and long-term reliability, further reducing maintenance expenses.
Universal Compatibility
Engineered with a versatile barbed-fit connection and standardized tubing, the system adapts easily to a wide range of battery types and configurations. This universal fit makes it a flexible solution without the need for specialized parts.
Low-height Profile
The compact float design, combined with discreet black PVC tubing, allows the system to fit in applications with limited clearance. Its low-profile build ensures proper operation without interfering with battery enclosures or nearby components.
Why Stealth Watering System

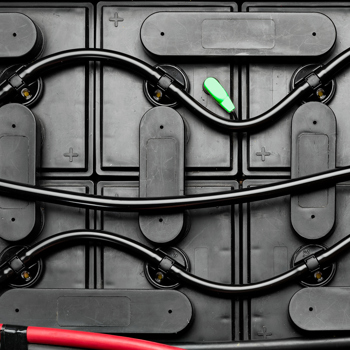

The Stealth Watering System integrates a barbed-fit design with the lowest profile watering system available in the industry. The barbed-fit design makes it quick, easy, and safe to install, and provides the system with universal compatibility. This flexibility gives you the performance and reliability that comes with Stealth.
One Size Fits all
Multiple float valve lengths are not needed, and all cells are filled to the appropriate level.
Fastest Tubing Installation
The barbed connections on the valves make the installation of our Speed Tubing™ fast, easy and secure. Secure the tubing by simply pushing the tubing onto the barbs.

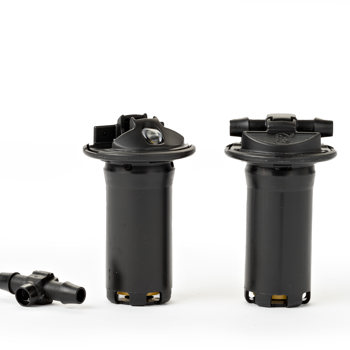

Snap-fit Base
Just snap the float valve into the vent well, no separate adapter is required. The valve can rotate for easy tubing alignment.
Widest range of operating pressure
It operates with a pressure range of 3 to 45 psi (0.2 to 3.0 bar).
Lowest Profile
At only 0.6 inches (15mm) tall, it is the lowest profile float valve watering system on the market.
Abuse-resistant Tubing
The system’s tubing resists kinks or crushing. With a small bend radius, it fits even the smallest cells easily, including 5 and 7-plate batteries.
Integrate Float Guard
This protective design eliminates the risk of moss-shield interference with the float while protecting the valve mechanism from separator oil.
High Visibility Water Level Indicator
The yellow fill-level indicator is highly visible from the top and side.
Technical Specifications
|
Input / Operating Pressure |
3 to 45psi / 0.21 to 3.10 bar |
|
Acceptable Filling Temperature |
2° to 71°C / 35° to 160°F |
|
Valve Body Material |
Polypropylene |
|
Max Valve Height above Vent |
1.52cm / 0.60in |
|
Flow Rate |
0.20 gpm per valve |
|
System Exposure Temperature |
-29° to 71°C / -20° to 160°F |
|
Tubing Material |
PVC |
|
Fitting Type |
US 1/4 turn and DIN |
|
Weight |
0.49kg / 1.1lb for a 12-cell kit |
Resources
Related Products
Stealth DC Cart
This 10 gallon (37.9 liter), DC powered unit easily transports water to your batteries.
Gravity Tank
This sturdy 5 US gallon (18.9 liter) tank uses gravity to supply the Stealth Watering System.
DirectLink
Designed to be used with the Stealth Watering System and the existing plumbing in your facility.
