Sentinel

Charger Monitor



The Sentinel constantly monitors charger voltage and reports data to the system Controller.   Also contains a highly visible, blue, pick light LED that is used to indicate the charger that has the correct battery to select for use.


  • One Sentinel required for each charger.
  • Universal voltage - Works on all high frequency, SCR and ferro resonant chargers in a conventional battery change application.
    • Sentinels work from 12 to 80 Volts DC
  • Includes data cable to interconnect sentinels in a daisy chain style connection.

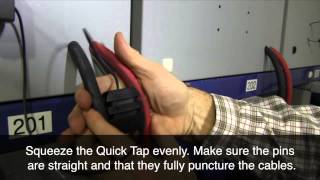

  • Quick Tap connector provides easy method to connect to charger's DC cable.

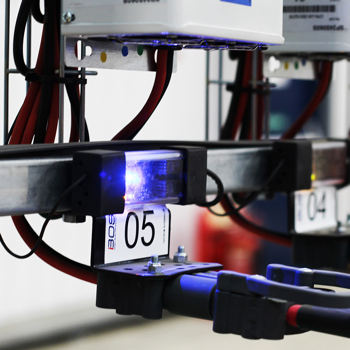

  • Highly visible pick light indicates the correct battery to select.
  • Green and Amber diagnostic LEDs shows connection and power status.

Power Source: Controller

Dimensions: 5.5"H x 1.75"W x 1" D (13.97 cm H x 4.45 cm W x 2.54 cm D)

Weight:  0.3 lb (0.14 kg)

Input Voltage: 24 VDC

Data Cable Length: 7 Ft (2.13 m) (included not shown)

Quick Tap Cable Length: 24" (61cm)

DC Battery Input: 12-80v
