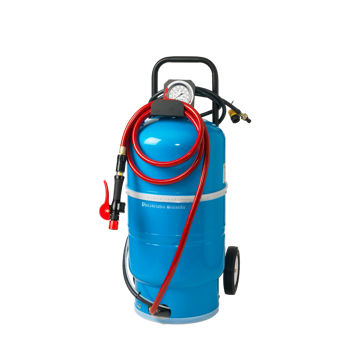

BladderTank Mini

Injector Water Supply - Unlimited Mobility

This sturdy 10 US gallon (37.9 liter) heavy duty steel tank cleverly uses your building's water pressure to deliver water to your batteries wherever they are. No AC power is required to operate this unit, which means unlimited mobility.  Simply fill the tank by connecting the input hose up to your building's water supply with the quick connect provided. When the tank is full (as indicated by the gauge on the top of the tank), disconnect the input hose and wheel the unit to the batteries that need to be filled.  Simply connect to the Water Injector System™ and activate the Instant Valve Pro™. A flow indicator will tell you when all of the Injector valves have shut off and it is time to disconnect.

The tank has “pressure memory”; water is stored in the tank at the same pressure that it went in (your building’s water pressure). The output flow rate is set to be appropriate for the Water Injector System™. Since this unit is powered by the pressure in your water lines, there are no pumps which makes the unit very cost effective and reliable.



The BladderTank Mini is supplied with 18 feet (5.5 meters) of 5/8" (1.5 centimeters) high-output industrial hose. Since this unit requires no electrical power its mobility range is unlimited.

A capacity gauge on the top of the tank indicates how full the tank is. The maximum capacity of 10 US gallons (37.9 liters) is achieved when the tank is pressurized to 80 psi (5.5 Bar).  If you have very low water pressure, or if you wish to use bottled water or some other unpressurized source you may need to use a Booster Pump.


System Exposure Temperature: 35° to 160°F (2° to 71°C)

Input Hose Size: 3/8 in (0.95 cm)

Input Hose Length: 9 ft (2.7 m)

Output Hose Size: 1 in (2.54 cm)

Output Hose Length: 18 ft (5.5 m)

Weight: 59.9 lb (27.2  kg)

Product Height: 41 in (104.1 cm)

Product Length: 19 in (48.3 cm)

Product Width: 17 in (43.2 cm)

Capacity: 10 gal (37.9 l)

Range: Unlimited

Wheel size: 8 in (20.3 cm)

Wheel Type: Ball Bearing

Part: INJ-T10M

Notes: Very low water pressure may require a booster pump. Used for filling the Water Injector System™
