Perfect for narrow applications
For years, the Stealth Watering System™ from Philadelphia Scientific has been the lowest profile battery watering system in the world. The system fits most any battery in the world — except Crown Battery’s Max•Haul battery and GNB Industrial Power’s flat-plate battery. That has now changed with the introduction and addition of the Stealth Slim valve, which is designed to fit in the narrow spacing between the straps of Crown Battery’s Max•Haul battery and GNB Industrial Power’s flat-plate battery.

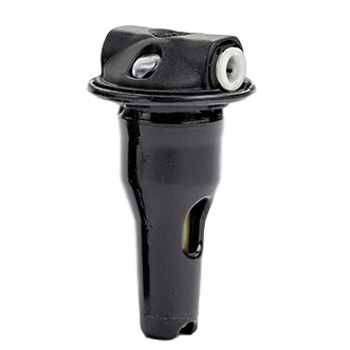

Stealth Slim valves — which are designed for use only with Crown Battery’s Max•Haul battery and GNB Industrial Power’s flat-plate battery — work with all Stealth water supplies and provide all the benefits of the Stealth Watering System™. The Stealth Slim valve has been designed with a more narrow float and float guard to fit in between the narrow space between the straps in these specific battery models.
Input/Operating Pressure: 3 to 45 psi (0.21 to 3.10 bar)
Acceptable Filling Temperature: 35° to 160°F (2° to 71°C)
Valve Body Material: Polypropylene
Max Valve Height above Vent: 0.60 in (1.52 cm)
Flow Rate: 0.20 gpm per valve
System Exposure Temperature: -20° to 160°F (-29° to 71°C)
Tubing Material: Proprietary Flexible PVC
Fitting Type: US 1/4 turn and DIN
Weight: 1.1 lb (0.49 kg)
