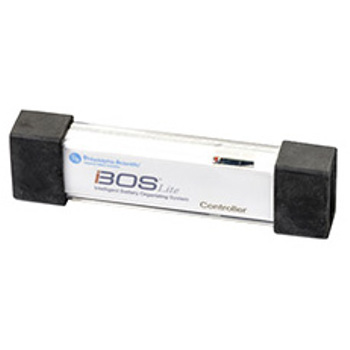

iBOS Lite Controller

Model: BOS-CB6300.

iBOS Lite Controller

iBOS Lite provides a simple cost-effective solution for smaller battery rooms that takes the guesswork out of choosing the proper battery. Which is the proper battery? The battery that is fully charged and the most cooled down. How do you find it?  Follow the blue light!

The iBOS Lite controller manages up to 50 chargers for each battery type and uses easy-to-see pick lights to provide clear direction on which charged battery to select.

iBOS Lite

iBOS Lite provides a simple cost-effective solution for smaller battery rooms that takes the guesswork out of choosing the proper battery. Which is the proper battery? The battery that is fully charged and the most cooled down. How do you find it?  Follow the blue light!

The iBOS Lite controller manages up to 50 chargers for each battery type and uses easy-to-see pick lights to provide clear direction on which charged battery to select.

  • Simple operation.
  • Bright, easy-to-see blue light tells you which charger to go to for the fully charged and most cooled down battery.
  • Pick light is in an enclosed container protecting if from dirt and grime.
  • Simple installation
    • Charger labels are not required.
    • Can be done with local maintenance staff and standard tools.
    • No certified installation required and no system configuration needed.

Dimensions: 1"H x 1.75"W x 7" D (2.5 cm H x 4.5 cm W x 17.8 cm D)

Weight:  1.9 lbs. (0.86 Kg.)

Input Voltage: 100-240 VAC 50/60 Hz

Power Usage: 1.6 Amp (max)

Power cord length: 5 Ft (1.5 m)

Notes:

  • Controls up to 50 Sentinels in one pool.
    * Note: A pool is a group of the same battery type and voltage.
  • One Controller per pool is needed.

Includes:

  • Controller
  • Power supply - Input: 100 - 240 VAC 50/60 Hz
  • 2 sets of data cable: Each set includes 25 feet (7.6 m) of data cable with one coupler

 iBOS Lite diagram (low res).png

How many chargers can I connect to one iBos Lite?
You are able to connect a maximum of 50 chargers to one iBos Lite unit.

I have different battery types, can I programme them all to the same iBos Lite?
You will only be able to connect one type of battery per iBos Lite, so if you have multiple battery types you will need multiple controllers.

Is the iBos lite controller all I will need in the management system?
The iBos Lite will require one sentinel per charger, so the amount of sentinels will depend on the amount of chargers you will be using.

Is online reporting an option if I purchase an iBos Lite?
Online reporting is not available on the iBos Lite, if online reporting is an important factor then we would suggest purchasing an iBos Plus or Pro, they come with many additional features as well as reporting.

Can I connect a tv screen to show the next available battery?
unfortunately this feature is only available on the iBos Plus or Pro.
